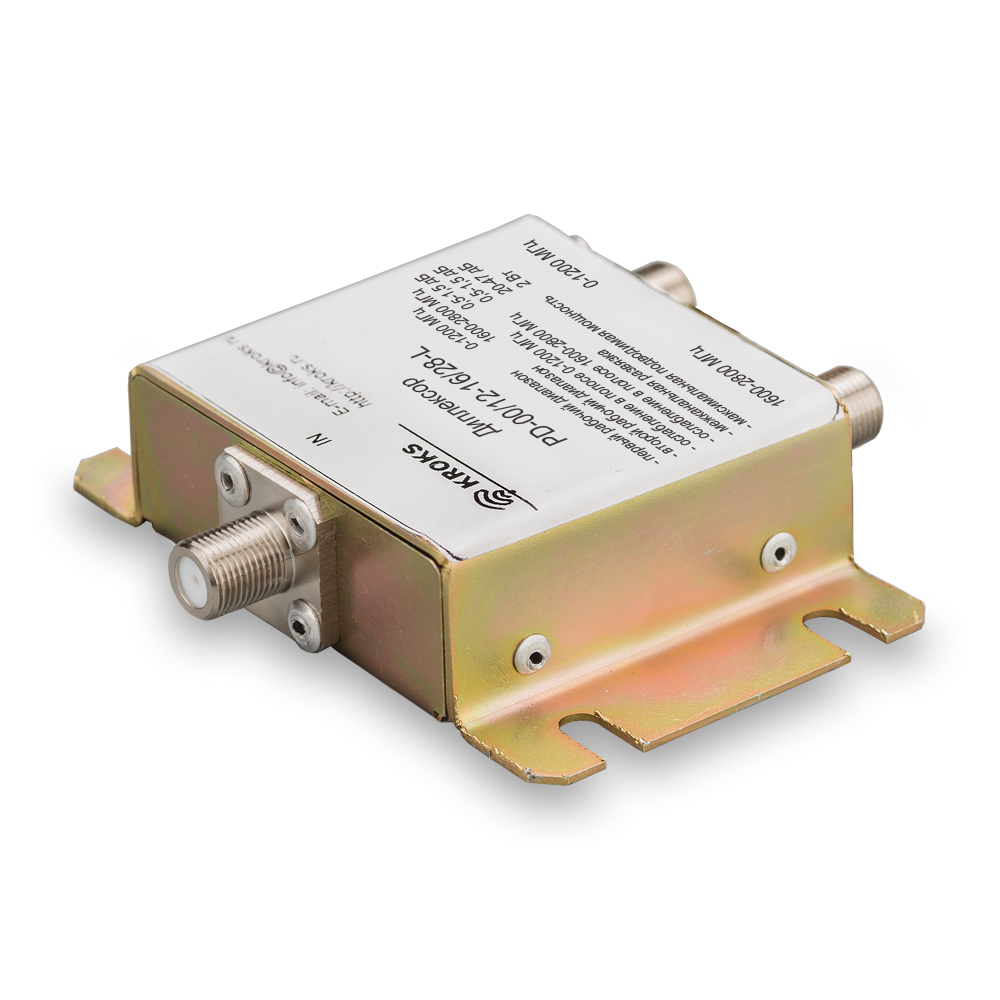

Diplexer PD-00/12-16/28-L is designed for frequency summation or splitting of the signal in the bands  0-1200 MHz and 1600-2800 MHz.

The diplexer is used to work with multi-band GSM, DCS, 3G, LTE repeaters operating on frequencies 900, 1800, 2100, 2600 MHz, to combine or separate signals of different frequency.

Low losses allow you to use diplexer at capacities up to 2 W. The case is made of galvanized steel.

Dimensions: length X width X height, mm                                      100 X 90 X 22

The first operating frequency range, MHz                                        0-1200

The second operating frequency range, MHz                                    1600-2800

Attenuation of the signal in the band 0-1200 MHz, dB                      0,5-1,5

Attenuation of the signal in the band 1600-2800 MHz, dB                 0,5-1,5

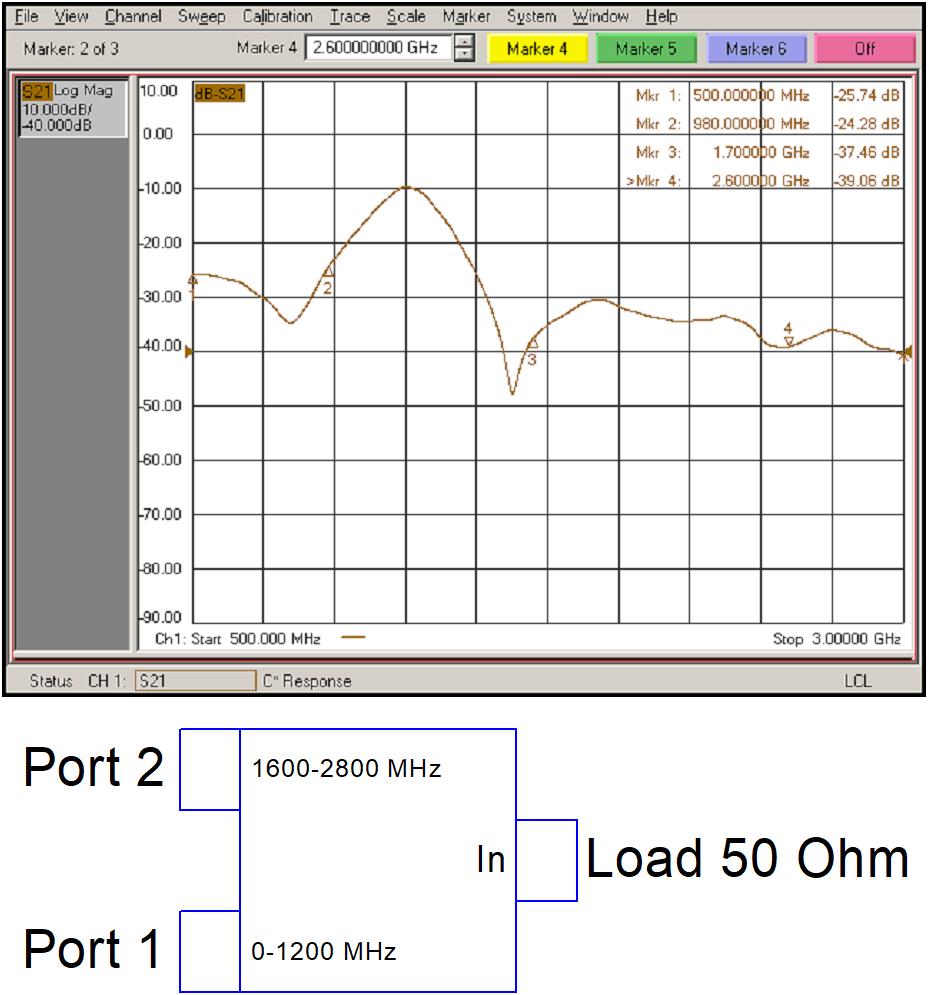

Inter-channel decoupling, dB                                                         20-47

Maximum input power, W                                                              2

Input impedance, Ohm                                                                  50

Connector                                                                                    N - female

Connector                                                                                    F - female

Operating temperature range, °C                                                  -40 ... +50

Max. permissible humidity of air,%                                                80

Dimensions (length , width , height ), mm
100  x   90  x   22

Antenna characteristics:

VSWR in the operating frequency range, not more than
1.5
Input impedance, Ohm
50
Maximum input power, W
2
Connector
F- female
N- female
Operating temperature range, °C
-40 … +50
Maximum permissible humidity, %
80

Equipment:

Position
Diplexer
Package
