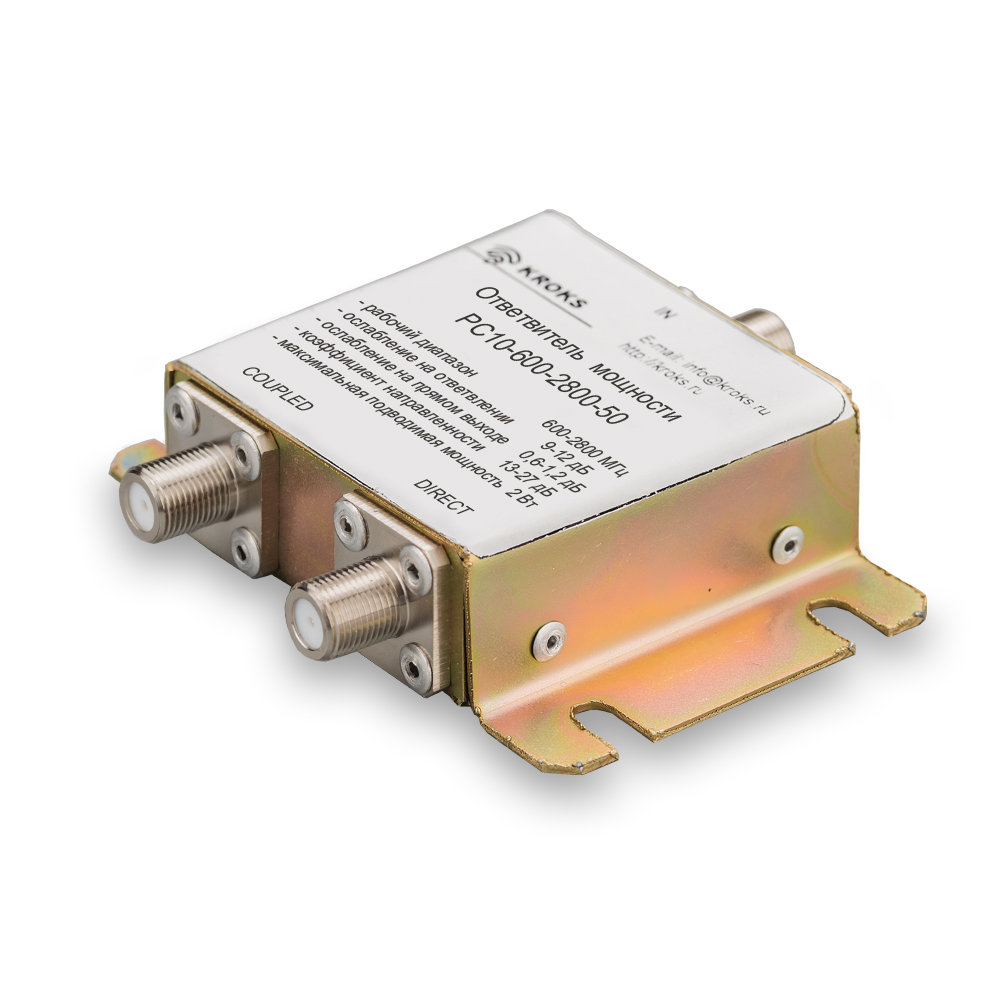

The power coupler PC10-600-2800-50 designed to branch the signal from the main signal with attenuation of 10 dB in the range from 600 to 2800 MHz.

The coupler is used to operate the single - and multiband GSM, DCS, 3G, LTE repeaters operating at frequencies 900, 1800, 2100, 2600 MHz. The coupler is mainly used for signal transmission through a long line into several antennas or other customer devices.

Small losses allow you to use the coupler at powers up to 2 W. The housing is made of galvanized steel.

Dimensions: length X width X height                                  100 X 90 X 22 mm

Operating frequency range, MHz                                        600-2800

SWR in the frequency range, not more than                        1.5

Power attenuation on the branch, dB                                  9-12

Direct output power attenuation, dB                                   0,6-1,2

Directivity factor, dB                                                          13-27

Input impedance, Ohm                                                      50

Maximum input power, W                                                   2

Connector                                                                         N - female

Connector                                                                         F - female

The operating temperature range, °C                                 -40 ... +50

Max. relative humidity, %                                                  80

Dimensions (length , width , height ), mm
100  x   90  x   22

Antenna characteristics:

Operating frequency range, MHz
600-2800
VSWR in the operating frequency range, not more than
1.5
Input impedance, Ohm
50
Maximum input power, W
2
Connector
F- female
N- female
Operating temperature range, °C
-40 … +50
Maximum permissible humidity, %
100

Equipment:

Position
Coupler
Package
