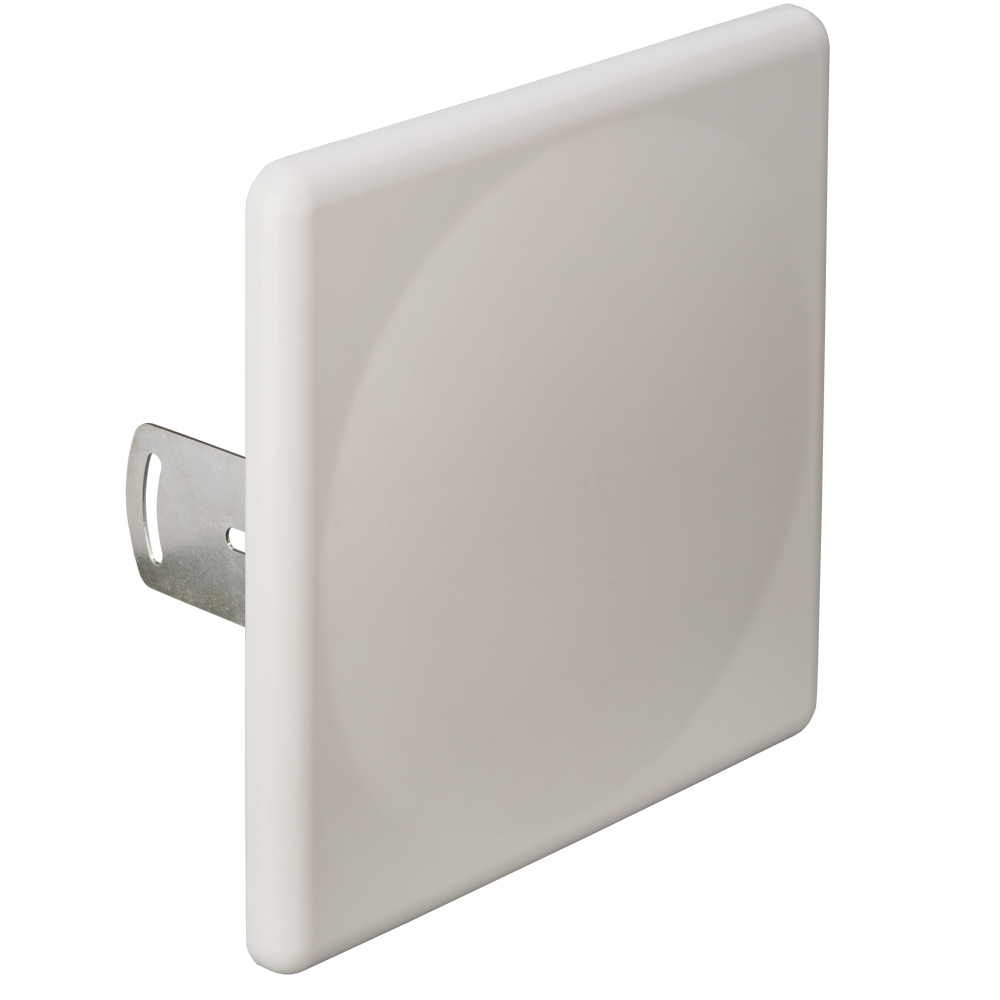

Directional panel WiMAX MIMO antenna KAA20-3500, 20 dB
Print
WiMAX MIMO panel antenna, gain 20 dB
Antenna KAA20-3500 is used in transceiver systems range 3400-3600 MHz. The antenna is designed for operation in wireless computer networks WiMAX, as well as alarm systems, telecommunications, etc.
Antenna KAA20-3500 made in a sealed enclosure, so it is resistant to weather conditions and can be used both inside and outdoors. The direction of polarization (vertical or horizontal) is selected during installation. Antenna works fine at the reception and signal transmission.
Body LTE antenna is made of high quality ABS plastic, which is resistant to UV radiation, does not lose its properties under a long action of sunlight and rain. The base of the antenna is painted by a method of powder coating, which ensures good adhesion of the paint layer, its durability and resistance to mechanical stress.
|
Dimensions (length , width , height ), mm
|
310
x
310
x
90
|
Antenna characteristics:
|
Operating frequency range, MHz
|
3300-3800
|
|
Antenna gain, dB
|
20
|
|
VSWR in the operating frequency range, not more than
|
1.7
|
|
Polarization
|
Linear
|
|
Input impedance, Ohm
|
50
|
|
Maximum input power, W
|
10
|
|
Connector
|
N- female
|
|
Permissible wind load, m/s
|
30
|
|
Operating temperature range, °C
|
-40 … +50
|
|
Maximum permissible humidity, %
|
100
|
|
Port isolation, not less, dB
|
18
|
|
Communication standard
|
5G
|
|
Type of mounting
|
on the tube
|
|
Execution type
|
Panel
|
Equipment:
|
Position
|
Упаковка
|
|
Руководство по эксплуатации (паспорт)
|
||
|
Хомут с метизами для крепления на мачту
|
||
|
Кронштейн угловой
|
||
|
Антенна KROKS KAA20-3500
|
||
